Project Log: Tuesday, December 21, 2010

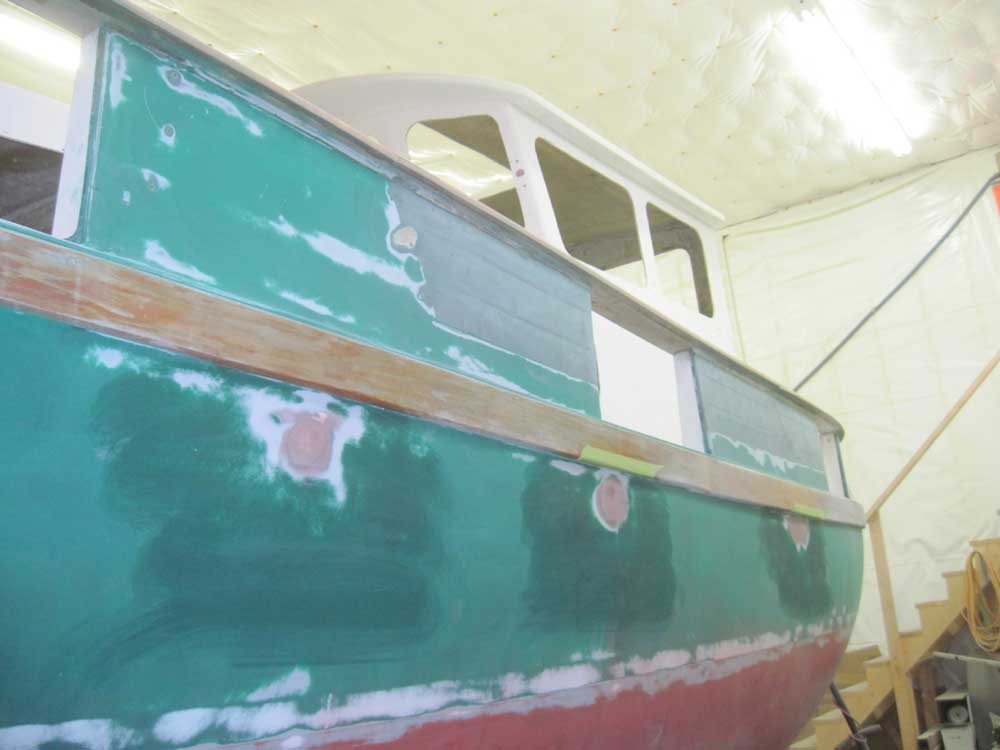

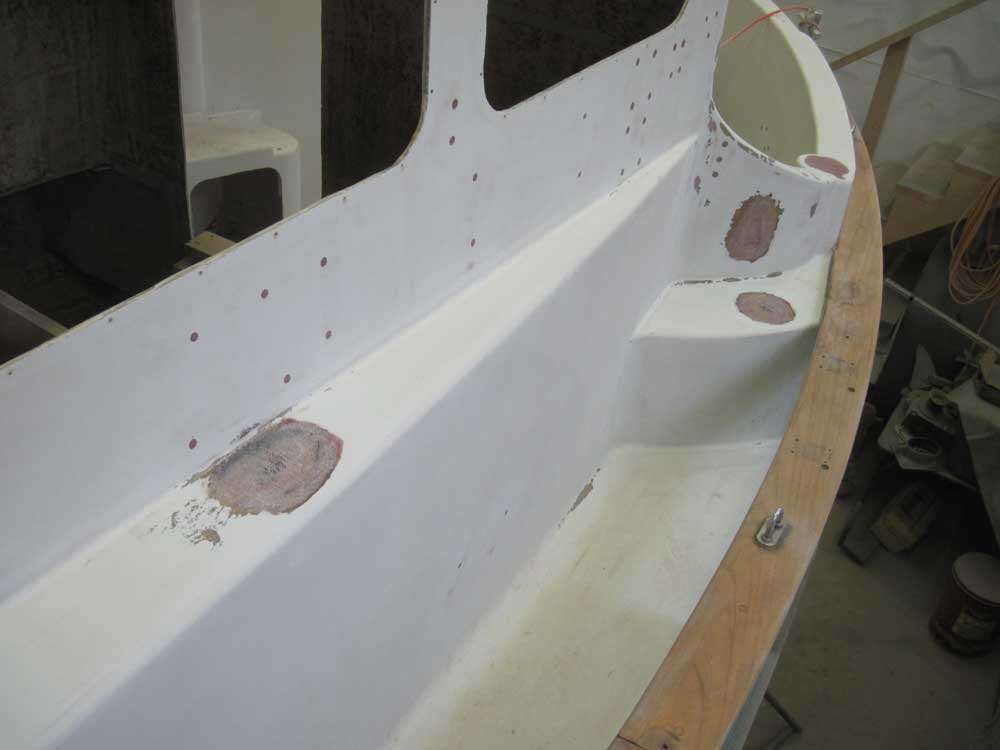

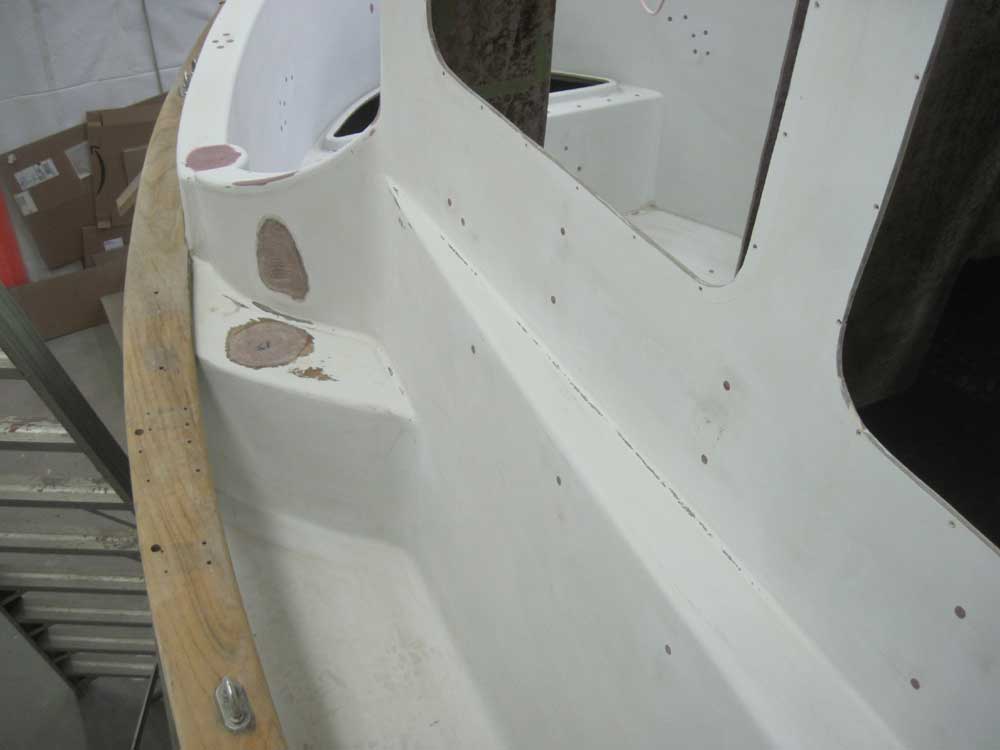

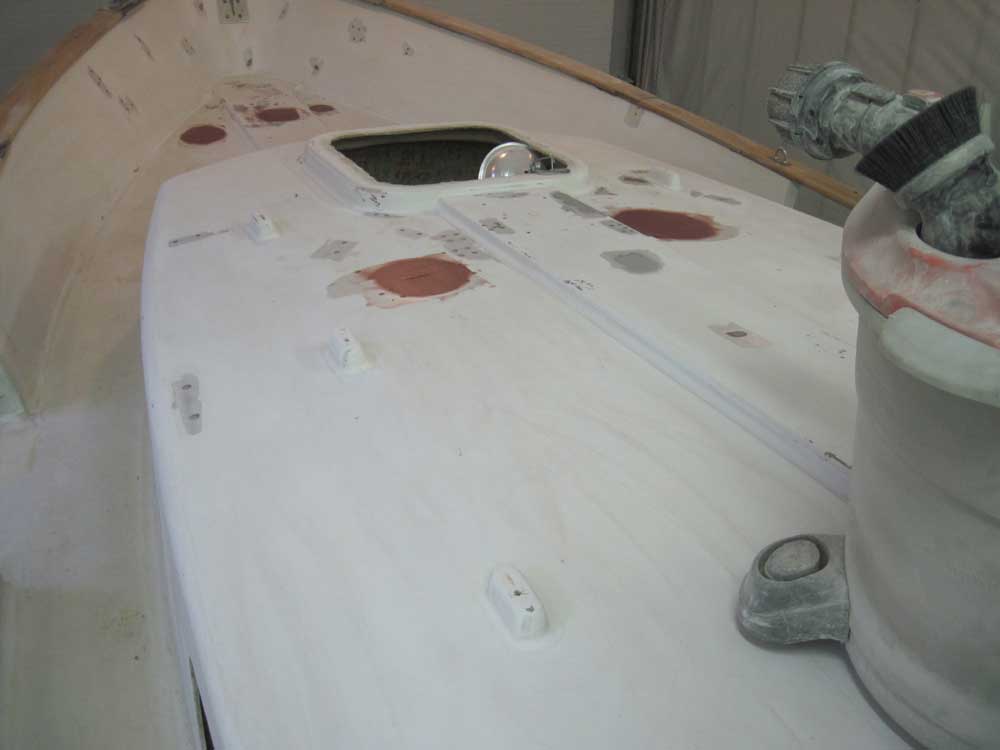

Yesterday's new fiberglass and round of fairing filler
had cured overnight, so I continued the process by
sanding the now-hardened results. I sanded all the
fastener locations (now on their second fill), the new

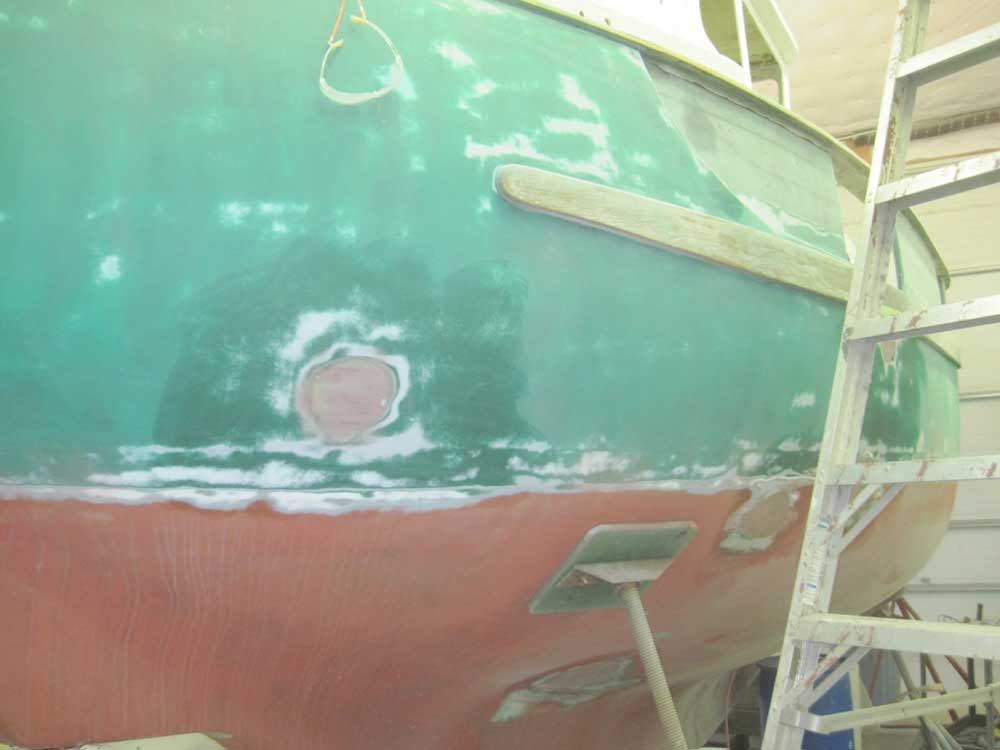

fiberglass patches on deck, and the first round of
filler on the through hulls.

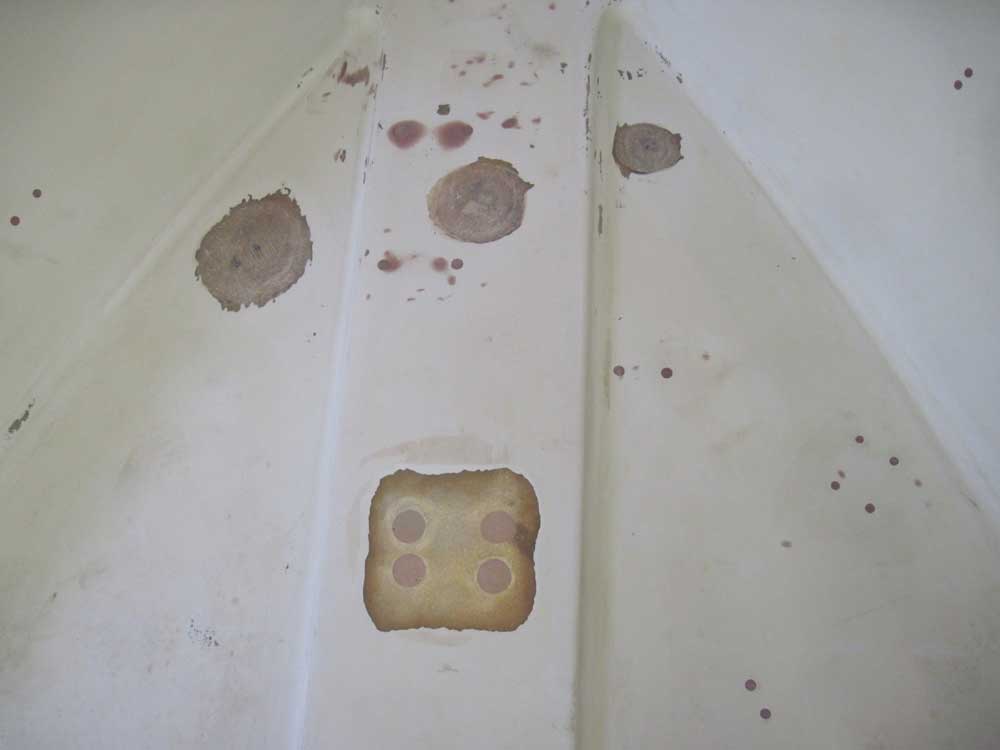

The solidly-filled holes in way of the forward mooring
bit had cured overnight, and now I used a grinder
equipped with an angle flap disc to grind out an area
encompassing all four holes and beyond. |
![](../../../images/december2010/sphsand-122110_small.jpg)
![](../../../images/december2010/thsand2-122110_small.jpg) |

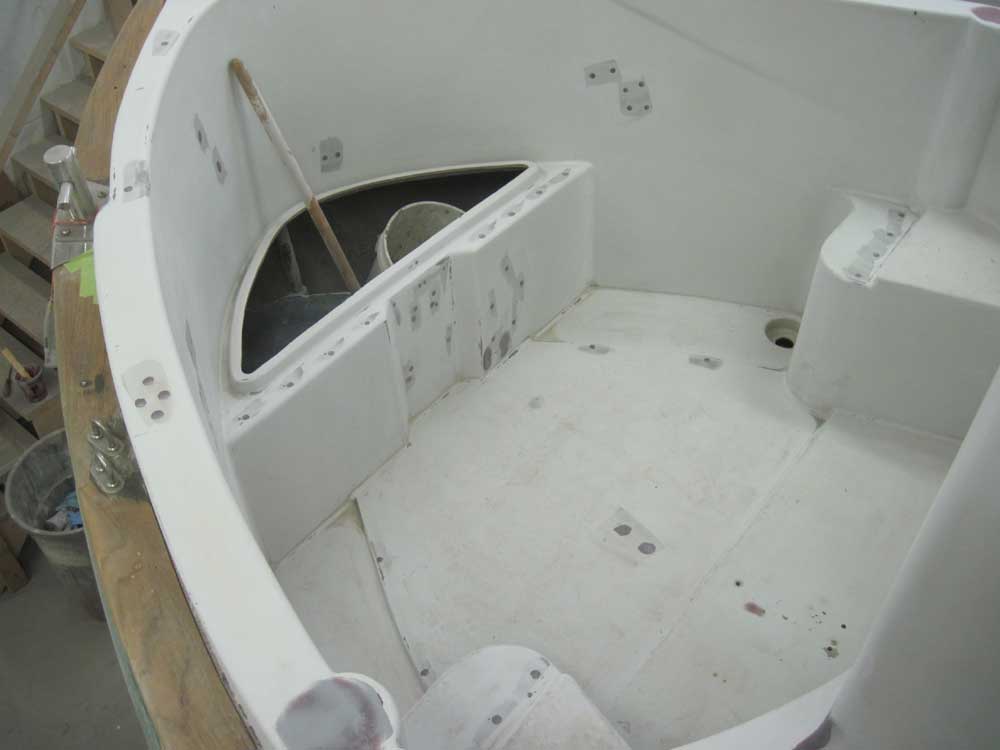

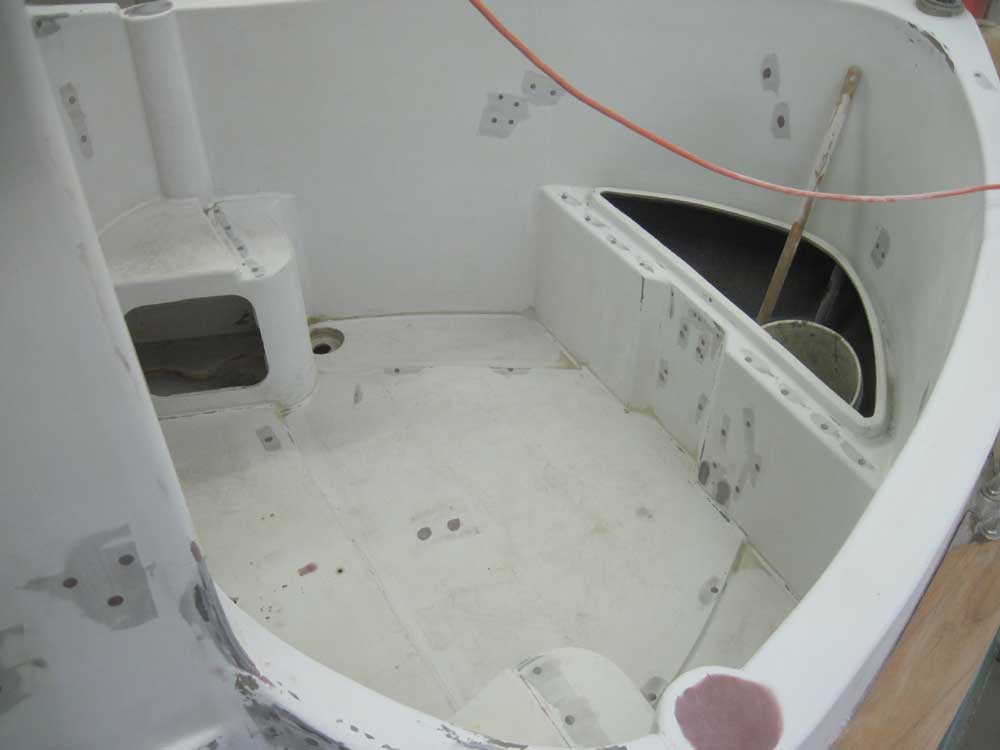

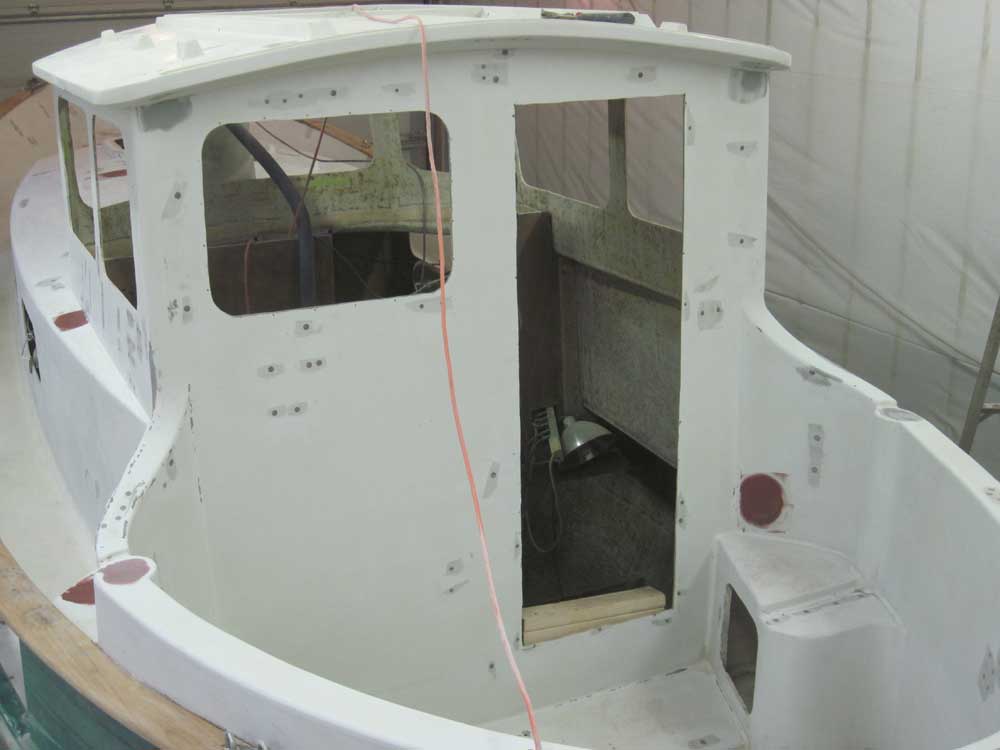

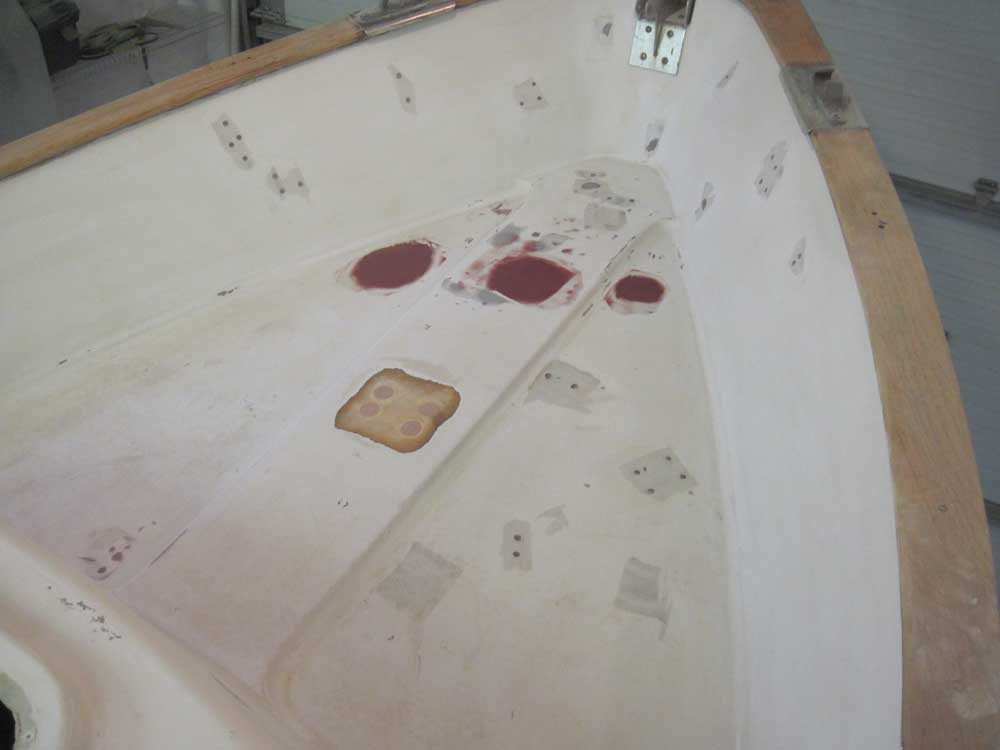

After the usual round of vacuuming and solvent-washing,
I applied a third coat of fairing filler to the fastener
holes and other areas on deck, this time using a
two-part fine fairing compound (gray in color).
The finer material would work to take care of the minor
depressions and pinholes left by the first two rounds of
shop-made microballoons-based filler. |
![](../../../images/december2010/aftph-122110_small.jpg)
![](../../../images/december2010/foredeck-122110_small.jpg) |

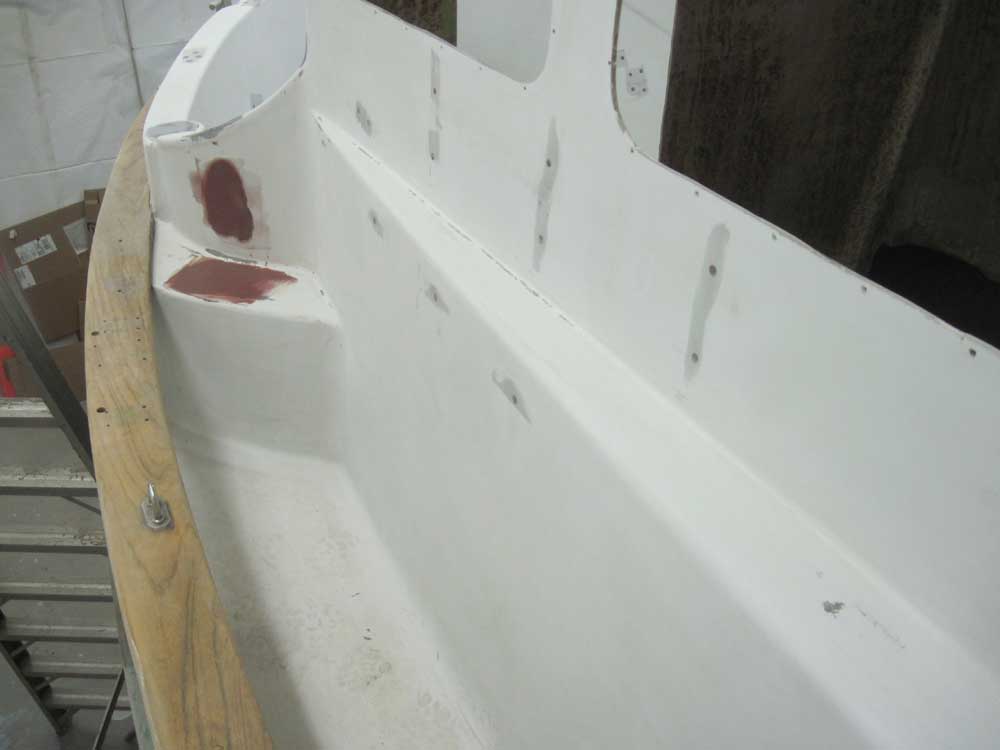

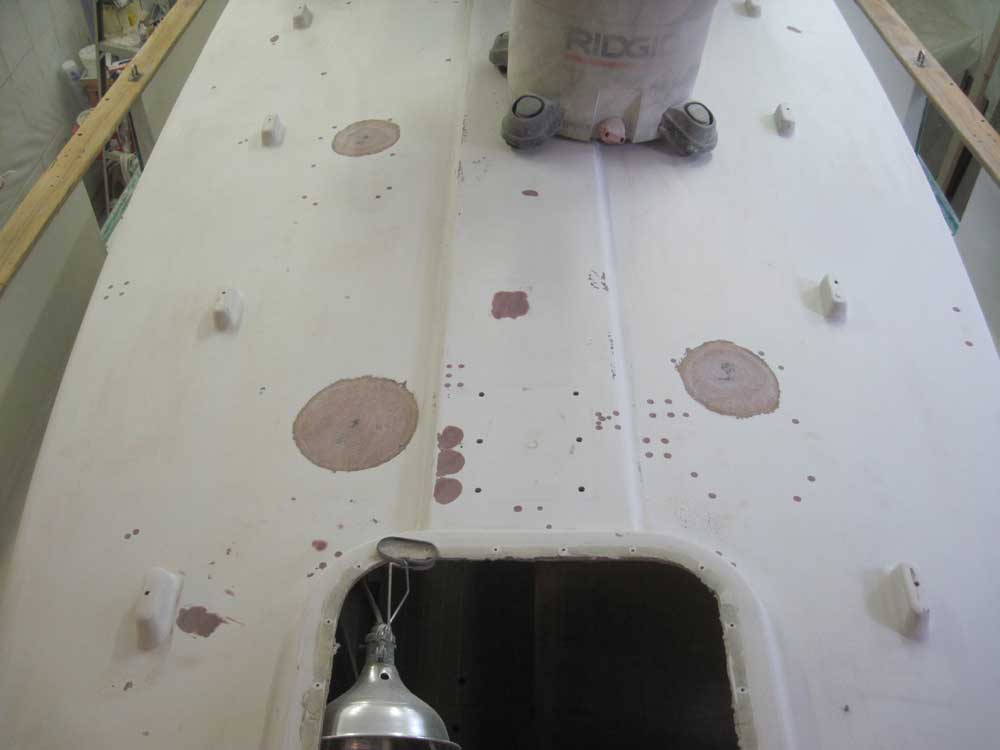

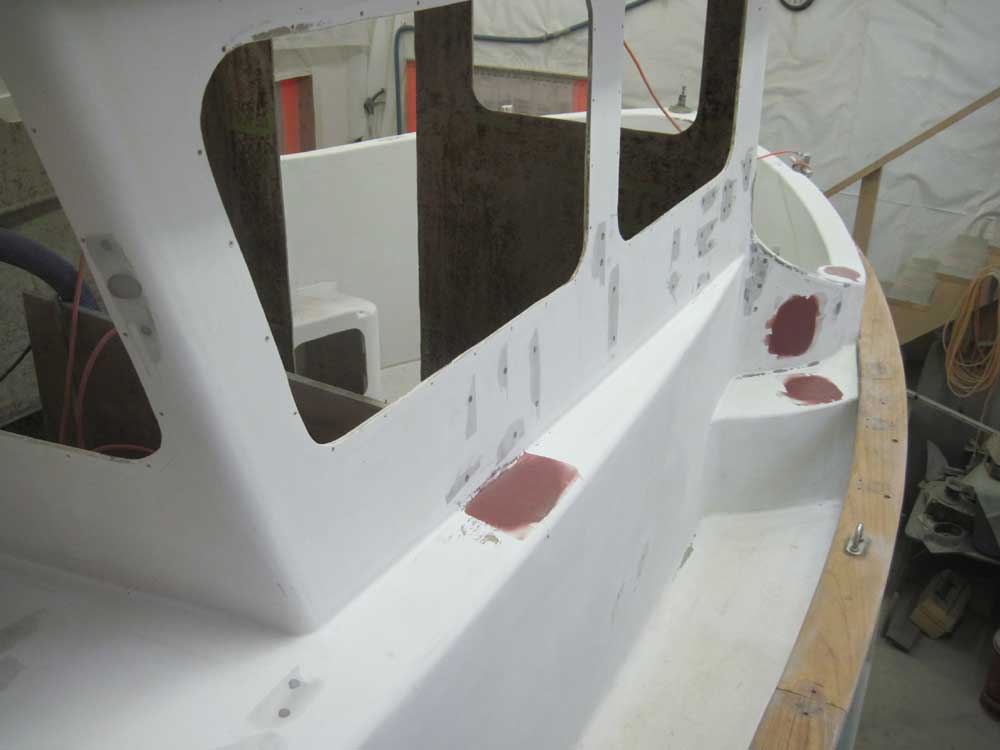

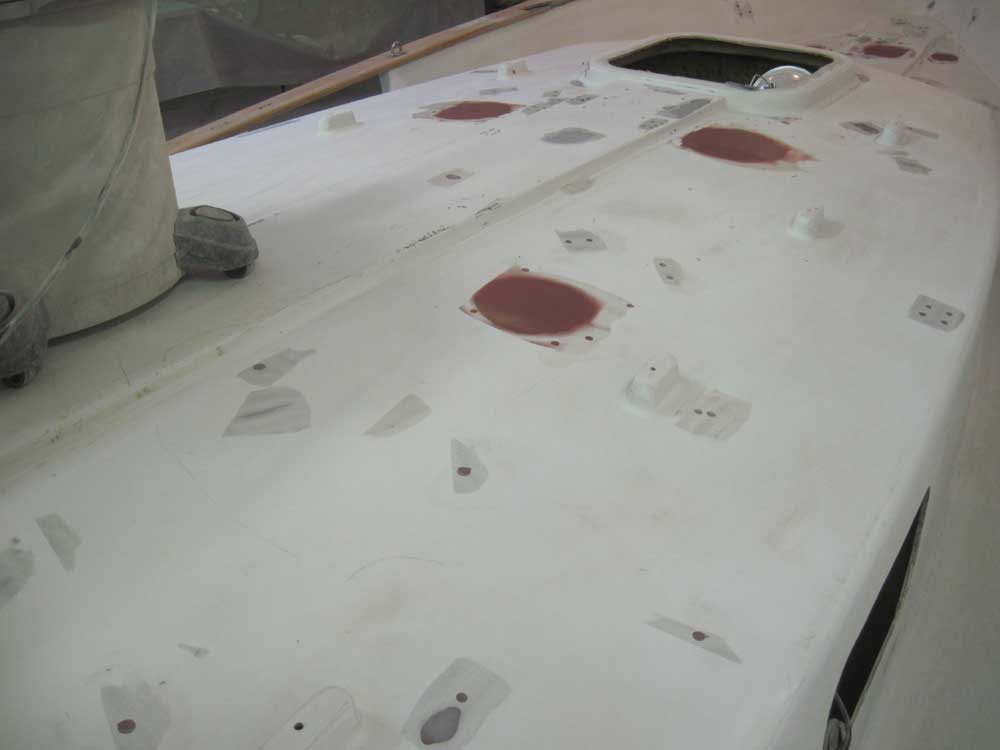

The newly-glassed holes on deck (those ventilator and
deck fill holes) were a couple steps behind the other
areas, so I applied the usual first round of fairing
filler to those areas (red color). |
![](../../../images/december2010/coachaft-122110_small.jpg) |

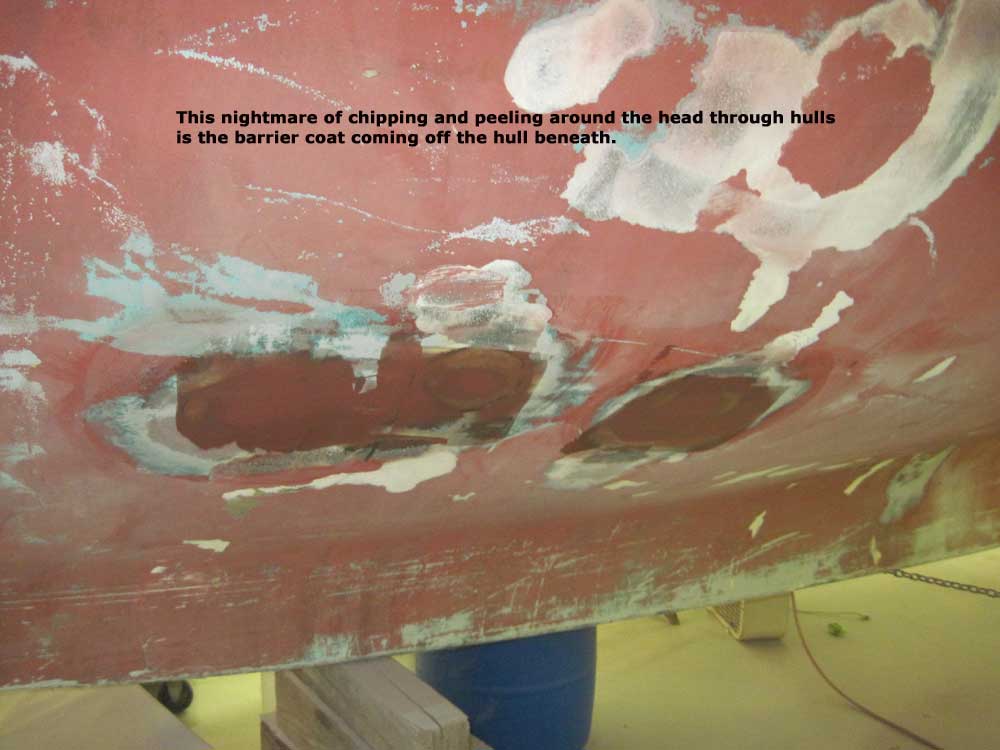

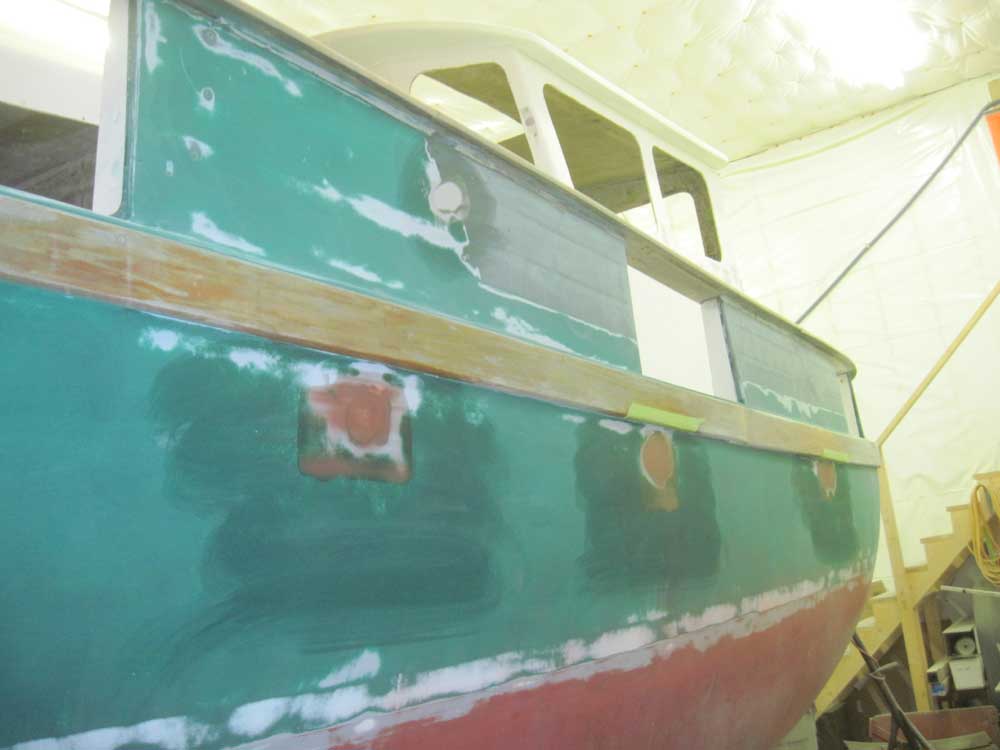

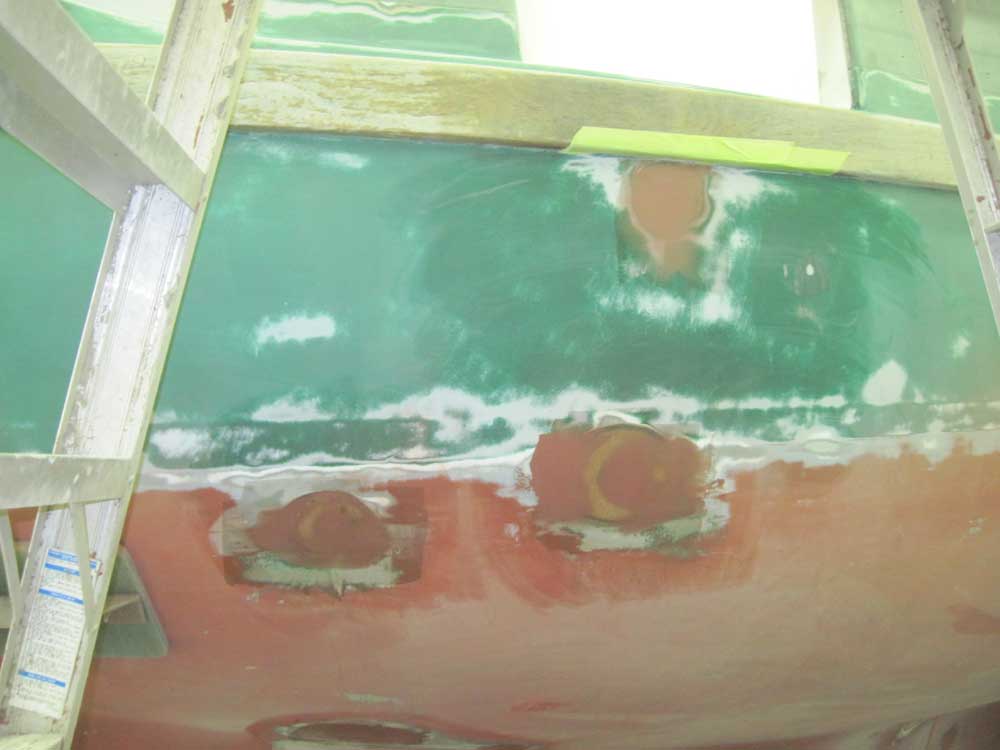

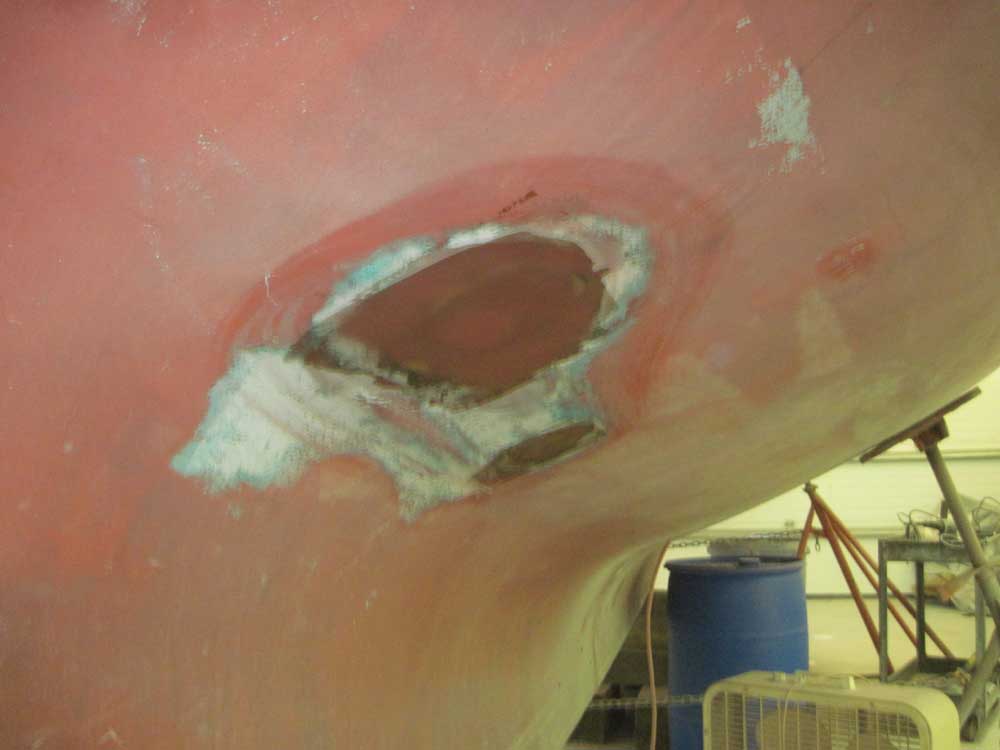

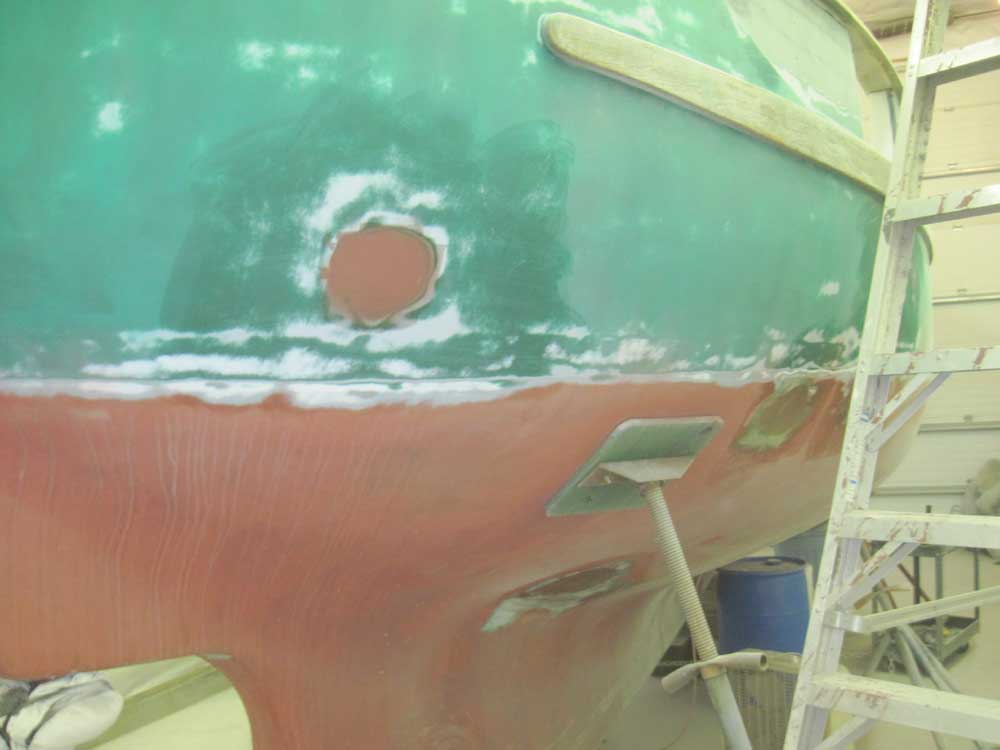

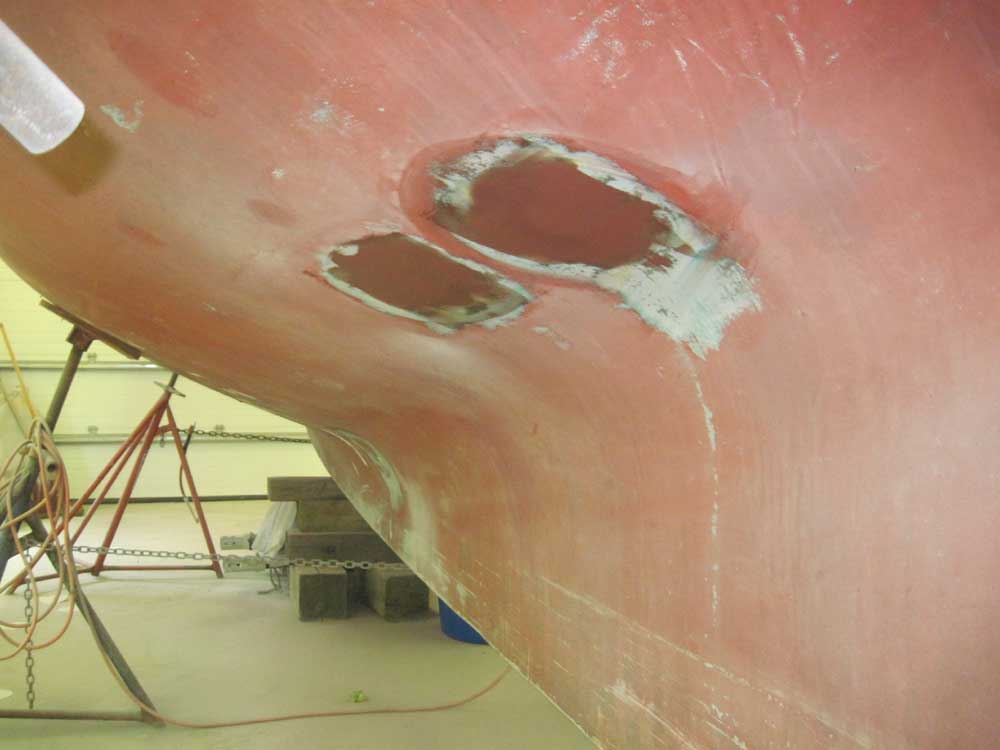

The first round of filler on the through hull patches
had turned out well. For the second application, I
used a 12" knife to pull the material across the
patches, ensuring as fair an application with the
adjacent hull as possible. |
![](../../../images/december2010/thfill3-122110_small.jpg)
![](../../../images/december2010/thfill6-122110_small.jpg) |

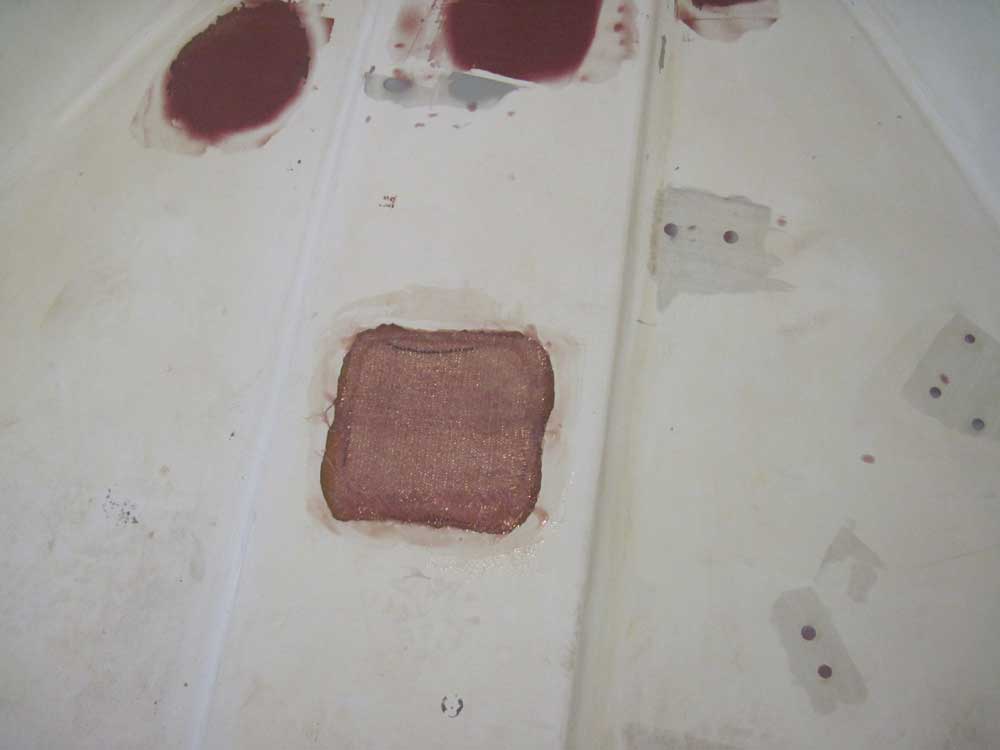

On the foredeck, I installed two rounded rectangular
layers of biaxial cloth over the mooring bit holes,
filling the area I ground out earlier. |
![](../../../images/december2010/bittpatch-122110_small.jpg)
|
Total Time Today: 5 hours
|
<
